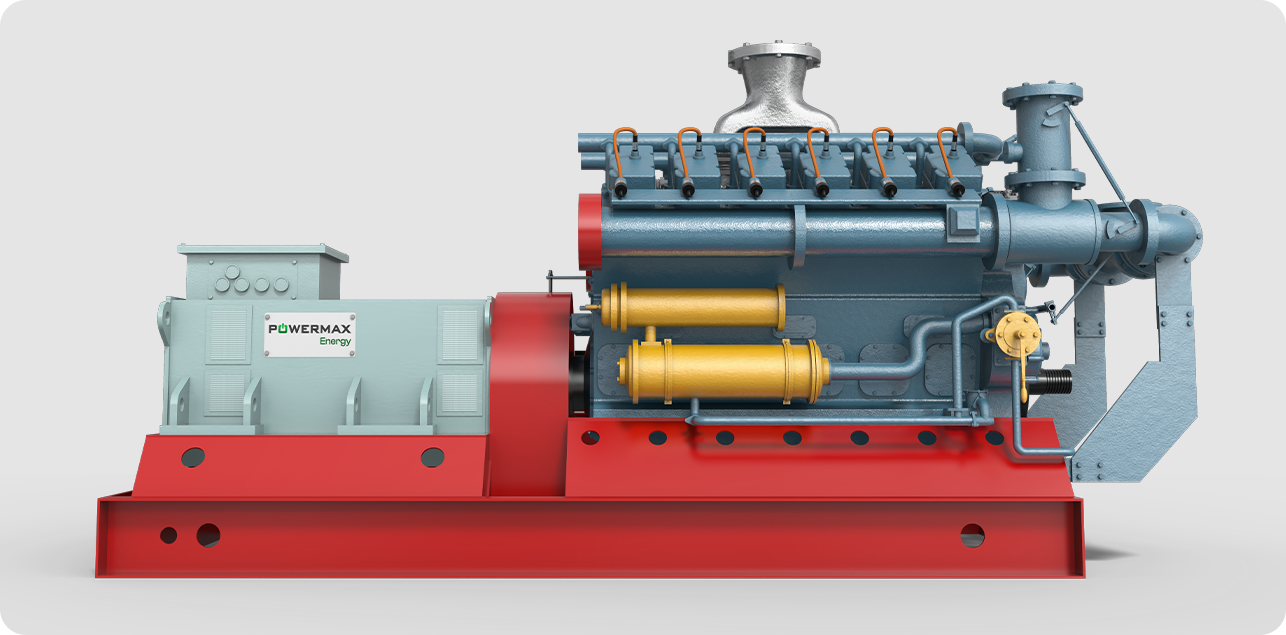

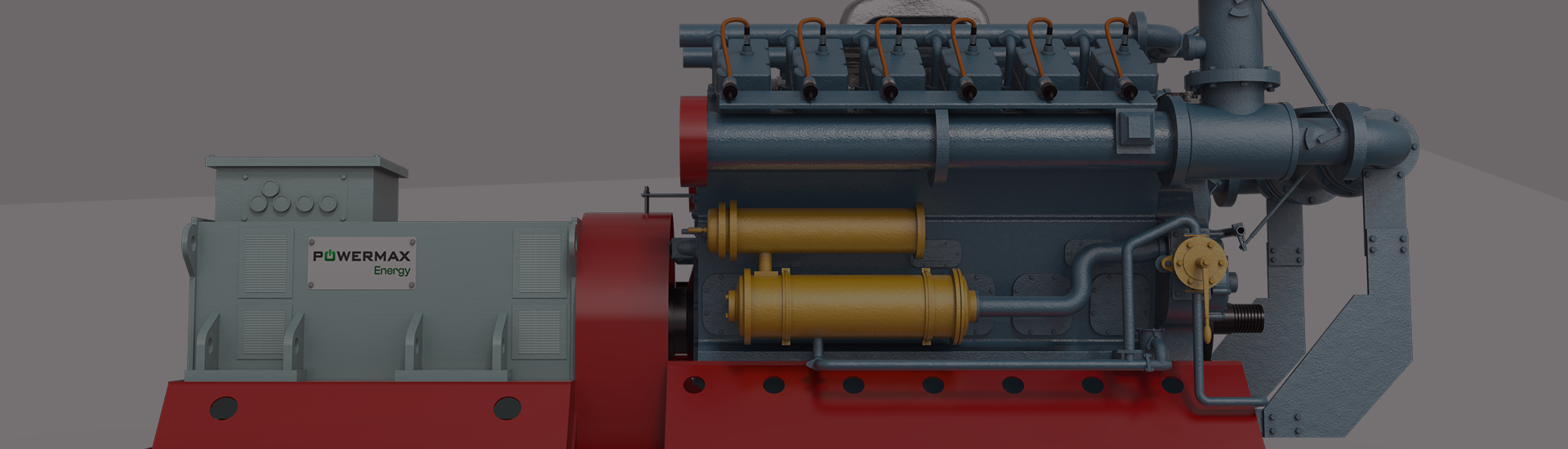

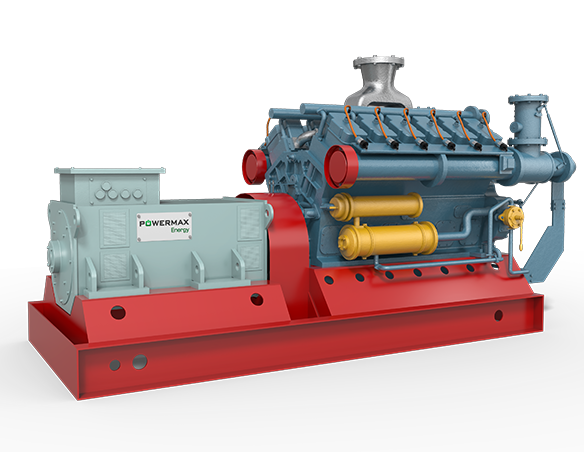

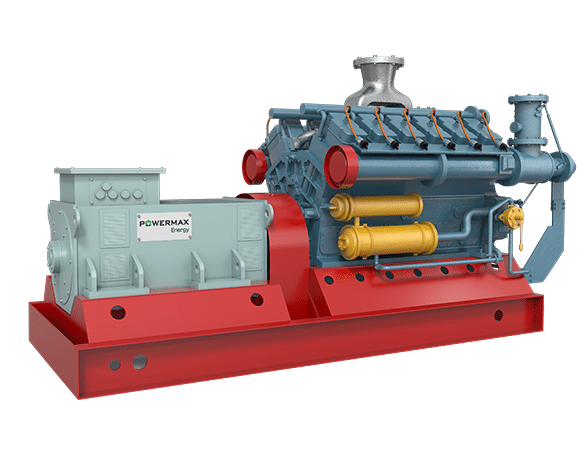

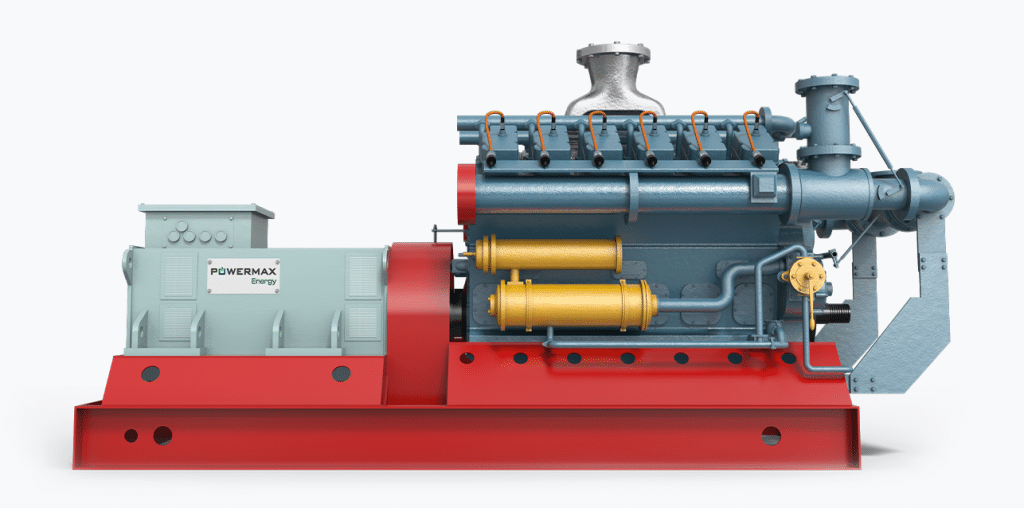

190 Series Gas Generator Set
Powermax Energy 190 Series Gas Generator Sets are designed to provide reliable and efficient power generation solutions for natural gas, biogas, methane gas and other gaseous fuel applications. With a power range from 400kW to 1200kW and an operating speed of 1000rpm, the 190 Series delivers stable electrical output, high efficiency and excellent fuel adaptability for industrial and distributed energy projects.
Powered by a V-type 12-cylinder gas engine with proven spark ignition technology, the 190 Series supports multiple fuel sources including natural gas and biogas. The generator set combines stable operation, efficient fuel utilization and flexible configuration to meet different project requirements.
Designed for long-term operation, the 190 Series integrates high-performance engine technology, reliable generator components and professional system solutions to help customers achieve continuous power supply and optimized operating costs.
Technical Features

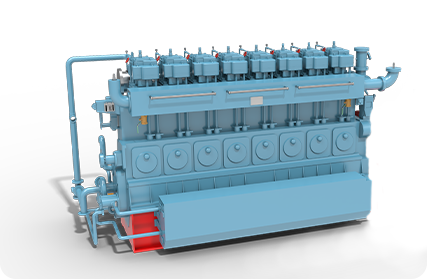

High-Efficiency Gas Engine Design
The POWERMAX 190 Series adopts a high-performance gas engine design featuring:
• 190mm cylinder diameter
• 1000rpm operating speed
• Water-cooled system
• Four-stroke combustion technology
• Spark ignition system
The optimized engine design provides high efficiency, stable operation and long service life.

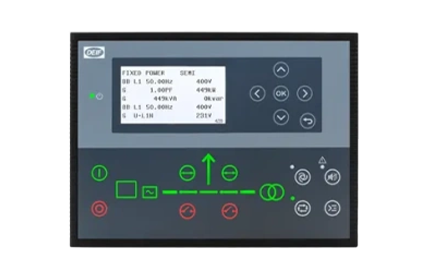

Intelligent Control System
The generator set is equipped with intelligent control technology to ensure safe and efficient operation.
Functions include:
• Engine monitoring
• Automatic protection
• Load control
• Fuel-air ratio optimization
• Remote monitoring capability

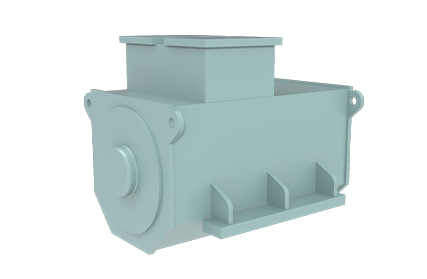

Reliable Generator System
The generator system is designed for industrial applications with:
• High-quality alternator components
• Brushless excitation system
• Flexible voltage configuration
• Grid connection capability
Why Choose POWERMAX 190 Series Gas Generator Sets
High Reliability for Continuous Power Generation
Designed for long-term industrial operation, POWERMAX 190 Series Gas Generator Sets provide excellent durability and stable performance.
With an annual operating capability of up to 8,000 hours and a designed lifespan of approximately 150,000 hours, the series is suitable for continuous power generation applications requiring high availability and low downtime.
Excellent Low-Pressure Gas Adaptability
The 190 Series Gas Generator Sets are designed to operate efficiently with low-pressure gas sources.
The system can maintain stable electrical output with gas pressure as low as 2.5kPa, reducing the need for additional gas compression equipment and lowering project investment costs.
Flexible Voltage and Frequency Options
POWERMAX 190 Series can be customized for different grid requirements and application scenarios.
Available configurations include:
• Voltage output options 400/440/480/6300/ 6600/ 11000/13800V
• 50Hz / 60Hz frequency options
This flexibility allows the generator sets to be applied worldwide.
Low Operation and Maintenance Cost
Optimized engine design and reliable components reduce maintenance requirements and operating expenses.
Key benefits include:
• Low lubricating oil consumption below
0.8g/kWh
• Extended maintenance intervals
• Reduced spare parts requirements
• Lower lifecycle operating costs
POWERMAX provides customers with a more economical solution compared with traditional diesel-based power generation.
Flexible Gas Generator Solution for Multiple Energy Sources
POWERMAX 190 Series Gas Generator Sets are designed to utilize a wide range of gaseous fuels, enabling customers to convert available gas resources into reliable electricity. With excellent fuel adaptability, the system supports natural gas, biogas, methane gas and other customized gas applications for industrial, distributed energy and renewable energy projects.
Natural Gas Power Generation
POWERMAX natural gas generator sets provide efficient and reliable power solutions for industrial facilities, commercial buildings and distributed energy systems. With stable fuel supply, high efficiency and low emissions, they are suitable for continuous power generation, gas pipeline projects and CHP applications.
Biogas Power Generation
POWERMAX biogas generator sets convert methane-rich biogas from wastewater treatment plants, agricultural waste, food waste and landfill gas recovery projects into clean electricity. This solution helps customers improve energy utilization, reduce waste emissions and create additional value from renewable resources.
Methane Gas Power Generation
The 190 Series can utilize methane gas from coal mines, associated gas fields and other sources to generate reliable onsite power. By recovering methane resources that would otherwise be wasted, the system improves energy efficiency while reducing greenhouse gas emissions.
Customized Gas Applications
For special fuel conditions such as low-calorific gas, mixed gas and industrial waste gas, POWERMAX provides customized generator solutions based on gas composition, pressure, power requirements and operating conditions to ensure stable and efficient operation.
| Parameter | Requirement | Unit |
|---|---|---|
| Inlet Gas Temperature | ≤ 40 | ℃ |
| Gas Calorific Value | ≥ 4.0 | MJ/Nm³ |
| Gas Pressure | 2.5 – 10 | kPa |
| Gas Pressure Change Rate | ≤ 1 | kPa/min |
| Dust Particle Size | ≤ 5 | μm |
| Dust Content | ≤ 30 | mg/Nm³ |
| Total Sulfur Content | ≤ 100 | mg/Nm³ |
| Hydrogen Sulfide (H₂S) Content | ≤ 50 | mg/Nm³ |
| Tar Content | ≤ 50 | mg/Nm³ |
| Chlorine Content | ≤ 50 | mg/Nm³ |
| Ammonia Content (NH₃) | ≤ 20 | mg/Nm³ |
| Oxygen Volume Fraction | ≤ 1 | % |
| Hydrogen Volume Fraction | ≤ 50 | % |
| Water Content | ≤ 40 (No Free Water) | g/Nm³ |

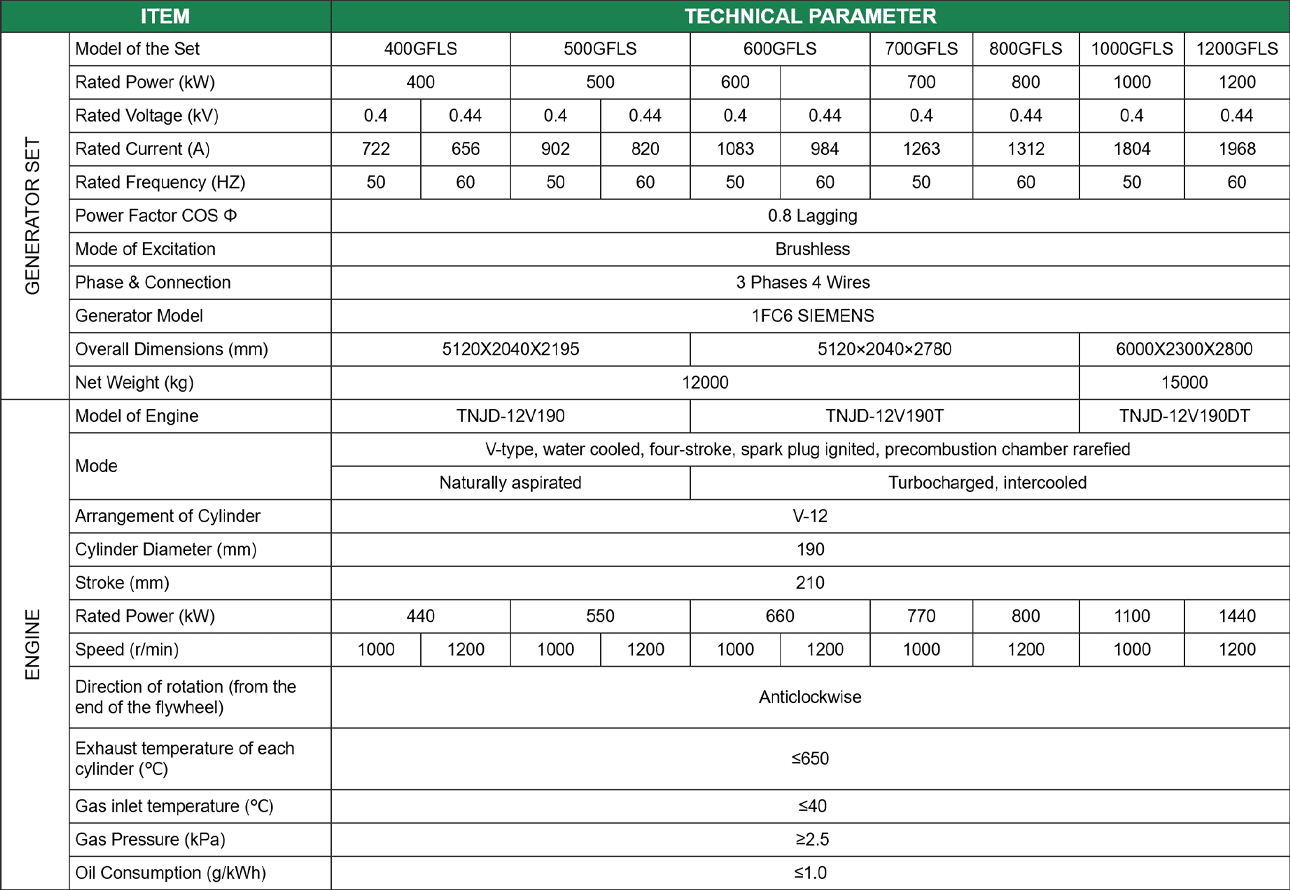

190 Series 400 – 1200KW Natural Gas/Biogas /Generator Set
Standard System Configuration
POWERMAX provides not only gas generator sets but complete gas-to-power solutions according to customer project requirements.
Gas Supply System

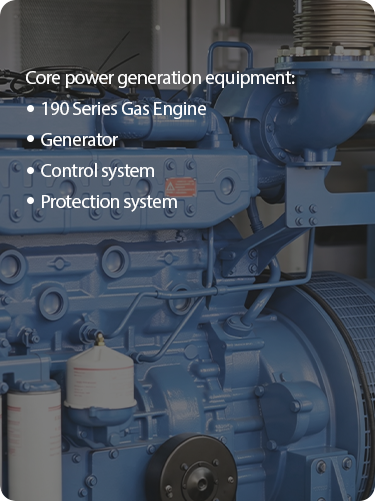

Gas Generator Set

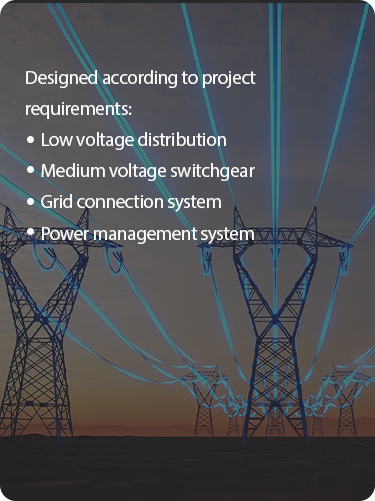

Electrical System

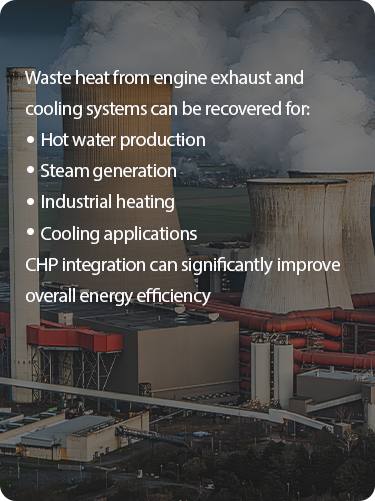

Heat Recovery System (CHP Option)

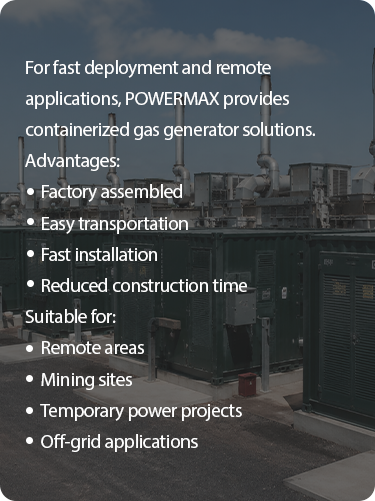

Containerized Power Plant Option
